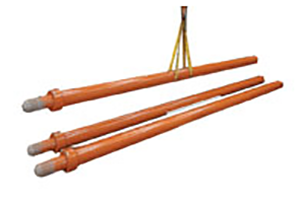

ELECTRODE LIFTING CYLINDERS
Specifications:
-
Avaiability:Avaiable in all kind of fastenings
-
Bore:from 40mm to 1400mm
-
Stroke:till 11000 mm (or longer for telescopic cylinders)
-
Rod:always with a high thickness chromium plating. Can be hardened, nickel plated, nitrided etc. according to request
-
Jackets:chrome plated or nitrided according to request
-
Cushioning:standard or special according to request
-
Feeding Ports:any kind avaiable (SAE - CETOP - GAS - NPT - etc)
-
Construction:completely steel-made or stainless steel made, aluminium alloy or other special materials
-
Accessories:On request: internal or external linear transducers, encoders, proximity sensors, control valves, balancing valves, securiry and maximum pressure valves
Product Features:
Used in the metallurgical refining furnace, for the lifting control of electrodes
